Yetuo ytjb-100sh electric mixer

Product model: ytjb-100sh


Mixing volume L (H2O): 40


Speed range rpm: 30-2200


Speed display: LCD


Speed display resolution RPM: ± 1


Timing function Min: 1-9999


Torque n.cm: 60


Overload protection: display fault and stop automatically


Motor protection: display fault and stop automatically


Viscosity MPAs: 50000


Clamping diameter range of drill chuck mm: 0.5-10


Overall dimension (dxwxh) mm: 186x83x220


Weight kg: 2.8


Dinen60529 protection mode: ip42


Allowable ambient temperature ℃: 5-40


Allowable ambient humidity%: 80


RS232 interface: Yes


Motor input power W: 120


Motor output power W voltage VAC: 100-240


Frequency Hz: 50 / 60


Safety protection: collet protective sleeve, safety buckle and anti-skid pad


Mixing time setting: Yes


Speed regulation mode: Rough and fine tuning


Speed mode: Yes


Fixed mode of mixing paddle: self-locking chuck


Product Quotation:Inquiry now

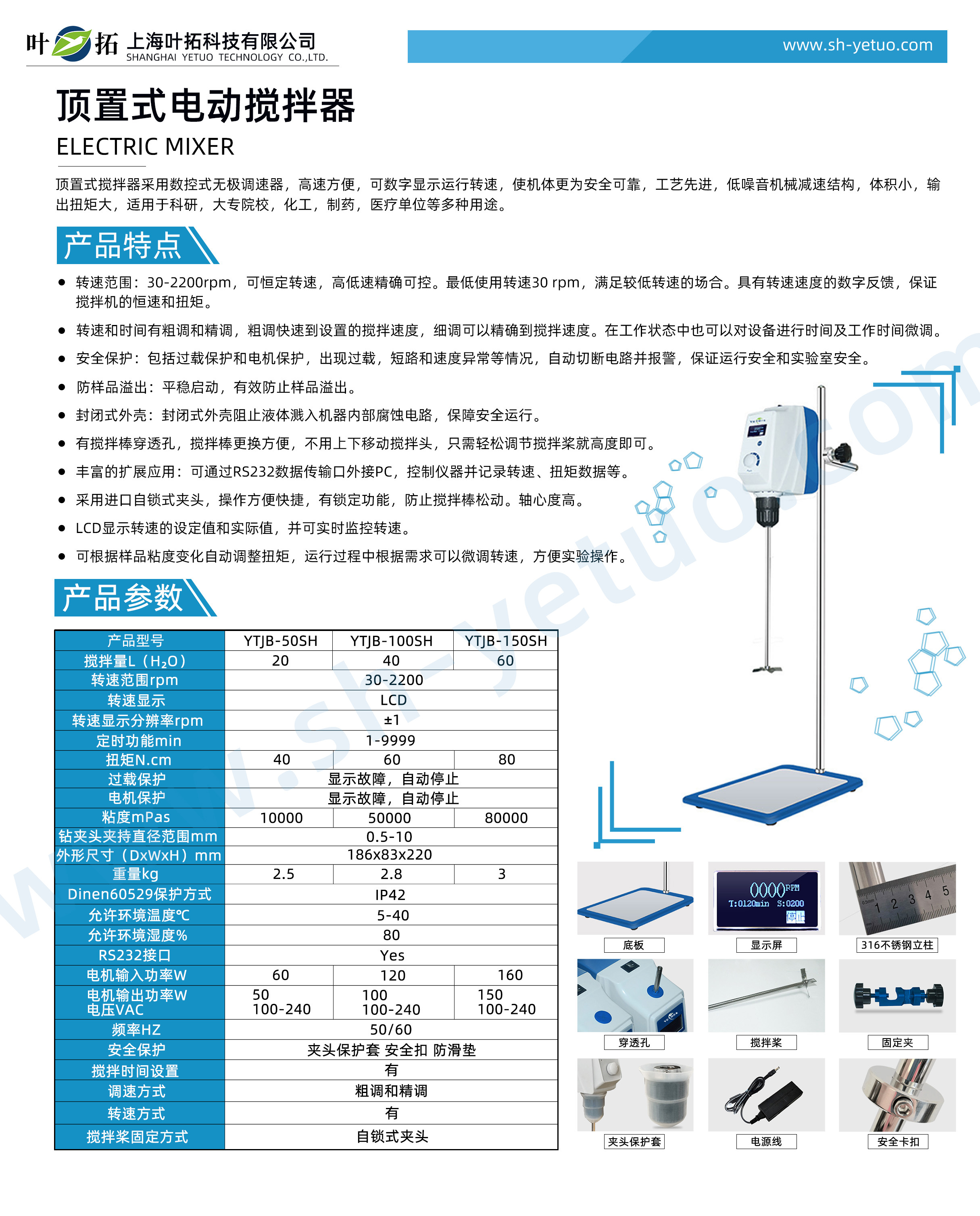

Yetuo YTJB-100SH electric mixer


Product model: YTJB-100SH


Product Overview:


The top mounted mixer adopts a CNC infinite speed controller, which is high-speed and convenient, and can display the operating speed digitally, making the machine safer and more reliable. It has advanced technology, low-noise mechanical deceleration structure, small size, and large output torque, and is suitable for various purposes such as scientific research, colleges and universities, chemical engineering, pharmaceuticals, medical units, etc.


Product Features of Yetuo YTJB-100SH Electric Blender


● Speed range: 30-2200rpm, with constant speed and precise control of high and low speeds. The minimum operating speed is 30rpm, which is suitable for situations with lower speeds. Digital feedback with rotational speed ensures constant speed and torque of the mixer.


The speed and time can be adjusted roughly or finely. Coarse adjustment can quickly reach the set mixing speed, while fine adjustment can achieve precise mixing speed. Equipment can also be fine tuned in terms of time and working hours during operation.


● Safety protection: including overload protection and motor protection. In case of overload, short circuit, and abnormal speed, the circuit will be automatically cut off and an alarm will be triggered to ensure safe operation and laboratory safety.


● Prevent sample overflow: Start smoothly to effectively prevent sample overflow.


Closed shell: The closed shell prevents liquid from splashing into the machine and corroding the circuit, ensuring safe operation.


There is a through hole for the stirring rod, making it easy to replace. There is no need to move the stirring head up and down, just adjust the height of the stirring blade easily.


Rich extension applications: It can be connected to an external PC through an RS232 data transmission port to control instruments and record speed, torque data, etc.


Adopting imported self-locking clamps, the operation is convenient and fast, with locking function to prevent the mixing rod from loosening. High axial degree.


The LCD displays the set and actual values of the speed, and can monitor the speed in real time.


The torque can be automatically adjusted according to the viscosity changes of the sample, and the speed can be fine tuned according to the requirements during operation, which is convenient for experimental operations.
