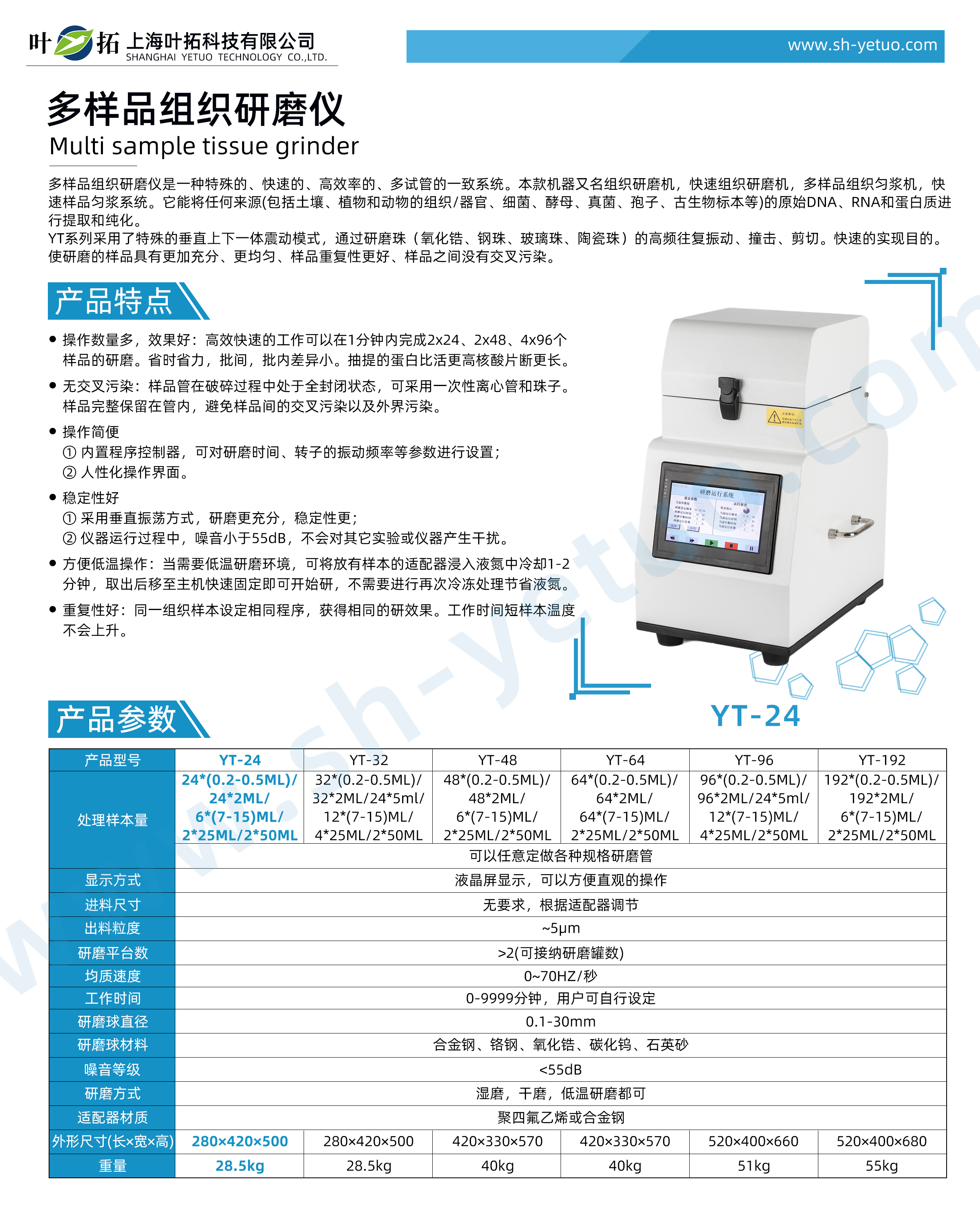

Ye Tuo YT-24 Tissue Grinder

Product parameters:

Product model: YT-24

Sample size processing: 24 * (0.2-0.5ML)/24 * 2ML/6 * (7-15) ML/2 * 25ML/2 * 50ML

Various specifications of grinding tubes can be customized at will

Display mode: LCD screen display, convenient and intuitive operation

Feed size: No requirements, adjust according to adapter

Discharge particle size:~5 μ m

Number of grinding platforms:>2 (number of grinding tanks that can be accepted)

Homogenization speed: 0~70HZ/second

Working time: 0-9999 minutes, users can set it themselves

Grinding ball diameter: 0.1-30mm

Grinding ball materials: alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand

Noise level:<55dB

Grinding methods: wet grinding, dry grinding, low-temperature grinding are all acceptable

Adapter material: PTFE or alloy steel

Dimensions (length x width x height): 280x420x500

Weight: 28.5kg


Product Quotation:Inquiry now

Yetuo YT-24 tissue grinder


Model: YT-24


Product Overview:


The multi sample tissue grinder is a special, fast, efficient, and consistent system for multiple test tubes. This machine is also known as a tissue grinder, fast tissue grinder, and multi sample tissue homogenizer, with a central speed sample homogenization system. It can extract and purify raw DNA, RNA, and protein from any source (including soil, plant and animal tissues and organs, bacteria, yeast, fungi, oysters, paleontological specimens, etc.).


The YT series adopts a special vertical up and down integrated vibration mode, which utilizes high-frequency reciprocating vibration, impact, and shear of grinding beads (zirconia, steel beads, glass beads, ceramic beads). Quickly achieve the goal. Make the ground samples more complete, uniform, with better sample repeatability and no cross contamination between samples.


Product features of Yetuo YT-24 tissue grinder


● Multiple operations and good results: Efficient and fast work can complete the grinding of 2x24, 2x48, and 4x96 samples in 1 minute. Time and effort saving, with small differences between batches and within batches. The extracted protein is longer than the active nucleic acid fragment.


● No cross contamination: The sample tube is in a fully enclosed state during the crushing process, and disposable centrifuge tubes and beads can be used. The samples are kept intact in the tube to avoid cross contamination between samples and external contamination.


● Easy to operate


① Built in program controller, which can set parameters such as grinding time and rotor vibration frequency;


② Humanized operating interface.


● Good stability


① Adopting vertical oscillation method for more thorough grinding and greater stability;


② During the operation of the instrument, the noise level is less than 55dB and will not interfere with other experiments or instruments.


● Convenient low-temperature operation: When a low-temperature grinding environment is required, the adapter containing the sample can be immersed in liquid ammonia and cooled for 1-2 minutes. After removal, it can be quickly fixed on the host to start grinding without the need for further freezing treatment to save liquid ammonia.


Good repeatability: Setting the same procedure for the same organizational sample can achieve the same research results. The sample temperature will not rise due to short working hours.
