Standard configuration:
Electrophoresis tank cover (including wires): 1 set
Electrophoresis tank lower shell (including electrodes): 1 set
Glue box (large glue): 1 piece
Glue box (small glue): 1 piece
1 large rubber tray (120 * 120)
1 wide rubber tray (120 * 60)
Long rubber tray (60 * 120): 1 piece
2 small rubber trays (60 * 60)
1 sample comb (2+3 teeth)
2 sample combs (6+13 teeth)
2 sample combs (8+18 teeth)
2 sample combs (11+25 teeth)
Product parameters:
Product model: DYCP-31DN
Gel specification: large gel 120x120mm; Small glue 60x60mm
Long rubber 60x120mm; Wide adhesive 120x60mm
Sample comb: 2+3 teeth/6+13 teeth/8+18 teeth/11+25 teeth (can be added with a gun)
Buffer volume: 700mL
Standard configuration: The large and small adhesive boxes are designed separately
The large glue can accommodate up to two rows of combs
The bottom of the tray has a background color band for easy observation and sample loading
Optional: Integrated front and back design of large and small adhesive boxes
Big glue can hold up to four rows of combs at a time
The bottom of the tray has a background color band and a fluorescent ruler
- Product Details
- Product manual

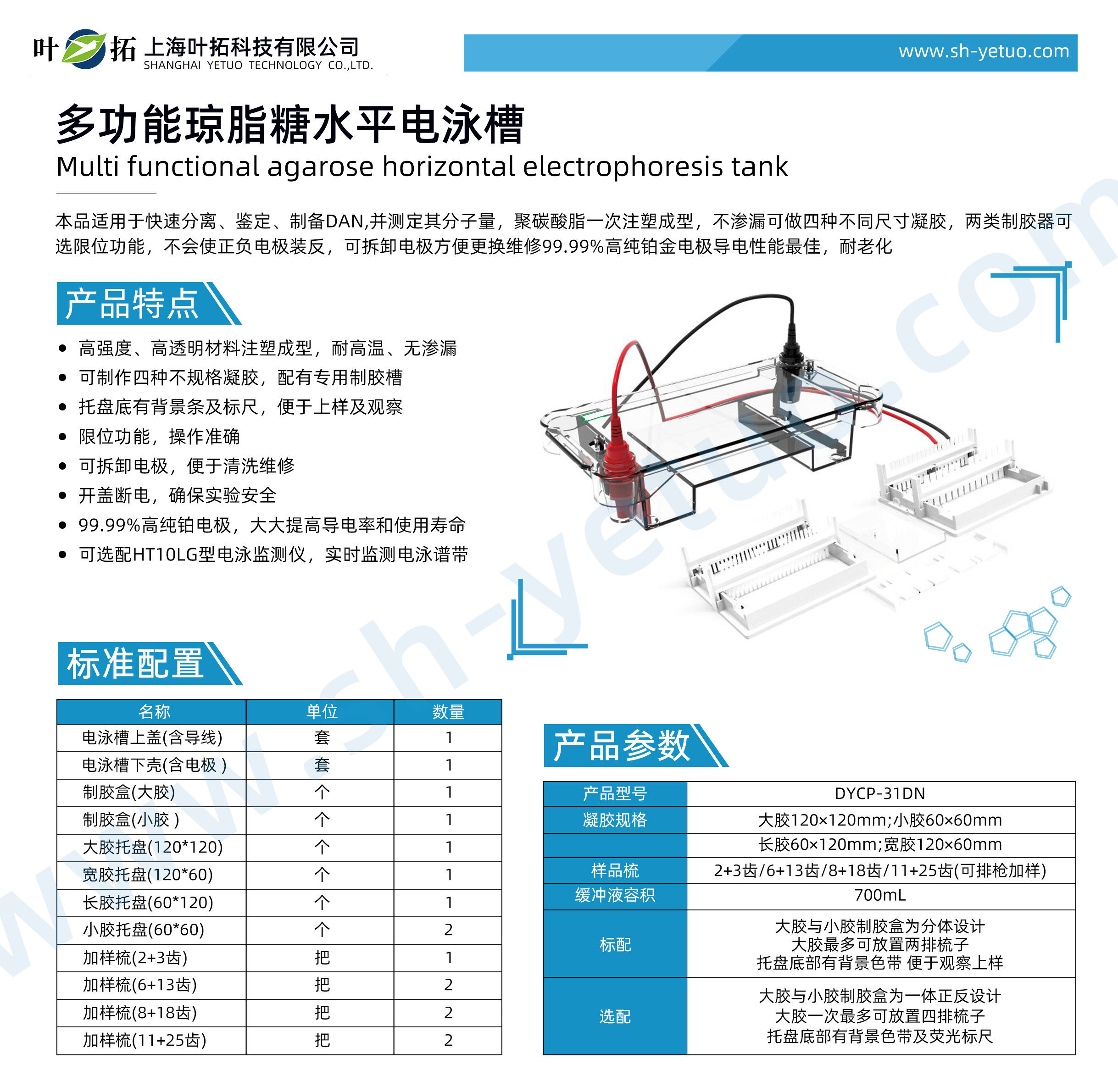

Ye Tuo DYCP-31DN horizontal electrophoresis tank
Model: DYCP-31DN
Product Overview:
This product is suitable for rapid separation, identification, preparation of DAN, and determination of its molecular weight. Polycarbonate can be molded into four gel of different sizes without leakage. Two types of glue makers can be used with the limit function, so that the positive and negative electrodes will not be reversed. The detachable electrode is convenient for replacement and maintenance. 99.99% high-purity platinum electrode has the best conductivity and aging resistance
Characteristics of Ye Tuo DYCP-31DN Horizontal Electrophoresis Tank Products
High strength, high transparency material injection molding, high temperature resistance, and no leakage
● Four kinds of non-standard gel can be made, with special glue making tank
The bottom of the tray has a background bar and ruler for easy sampling and observation
● Limit function, accurate operation
Removable electrodes for easy cleaning and maintenance
Open the cover and cut off the power to ensure the safety of the experiment
99.99% high-purity platinum electrode, greatly improving conductivity and service life
Optional HT10LG electrophoresis monitor for real-time monitoring of electrophoresis bands
