Product parameters:
Product model: DB-3AB
Power supply voltage: 220V 50HZ
Temperature resolution: 1 ℃
Temperature fluctuation: ± 1 ℃
Temperature control range: RT+0-400 ℃
Temperature control program: constant value mode
Temperature uniformity: ± 2.5%
Display mode: LCD screen
Working environment temperature: 5-40 ℃
Input power: 3700W
Heating plate size (depth x width x height mm): 600x400
Dimensions (Depth x Width x Height mm): 400x600x220
Packaging dimensions (depth x width x height mm): 650x465x260
Tray load capacity: evenly weighed 30KG, maximum load capacity 50KG
Tray material: High quality cold-rolled steel
Timing range: 0-9999min
Overtemperature protection function: Forcefully turn off heating after instrument overtemperature alarm
Continuous working time at 300 ℃: 7 days
Net weight/gross weight (KG): 28.5/31
- Product Details
- Product manual

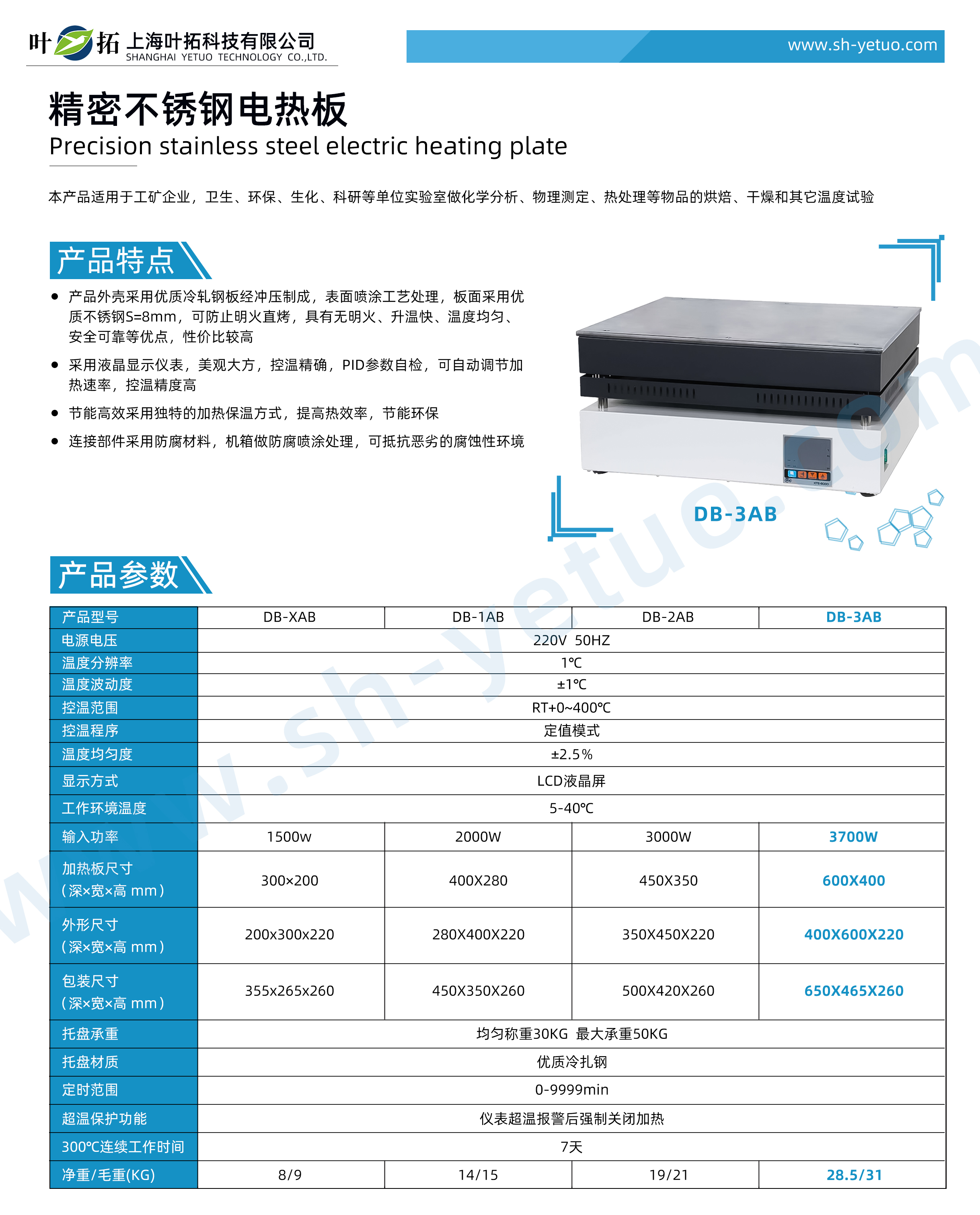

Ye Tuo DB-3AB Precision Stainless Steel Electric Heating Plate
Model: DB-3AB
Product Overview:
This product is suitable for baking, drying, and other temperature tests of chemical analysis, physical testing, heat treatment, and other items in laboratories of industrial and mining enterprises, health, environmental protection, biochemistry, scientific research and other units.
Characteristics of Ye Tuo DB-3AB Precision Stainless Steel Electric Heating Plate Products
The product shell is made of high-quality cold-rolled steel plate through stamping, and the surface is treated with spray coating technology. The surface of the plate is made of high-quality stainless steel S=8mm, which can prevent direct heating by open flame. It has the advantages of no open flame, fast heating, uniform temperature, safety and reliability, and high cost-effectiveness
Using LCD display instrument, beautiful and elegant, precise temperature control, PID parameter self check, automatic adjustment of heating rate, high temperature control accuracy
● Energy saving and efficient use of unique heating and insulation methods to improve thermal efficiency, energy conservation and environmental protection
The connecting components are made of anti-corrosion materials, and the chassis is treated with anti-corrosion spray coating, which can resist harsh corrosive environments
