Product parameters:
Product model: YTF500-F
Power supply: 220V 50/60HZ
Speed range: 2000-28000rpm
Speed display: LCD display
Speed control: continuously variable transmission
Timed control: 6000 minutes
Torque display: Yes
Contact material material: SS304
Material of shaft sleeve: polytetrafluoroethylene
Standard working head type: cutting teeth
Maximum operating temperature: 120 ℃
Standard working head quantity: 1 piece
Allowable ambient temperature: 5-40 ℃
Allowable relative humidity: 80%
Process type: Batch processing
Related accessories: working bracket, base
Weight: Approximately 9kg
- Product Details
- Product manual

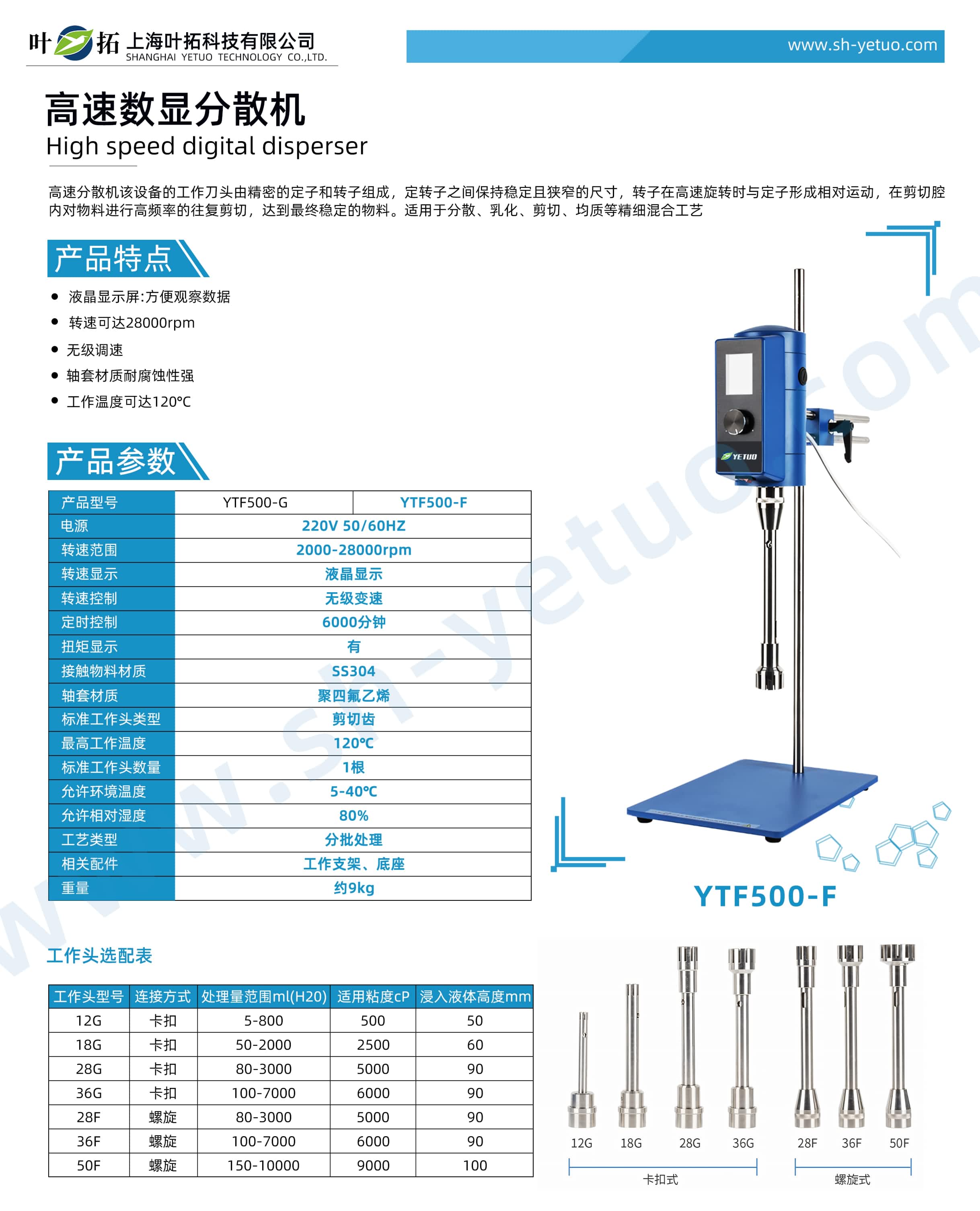

Yetuo YTF500-F high-speed digital disperser
Model: YTF500-F
product overview
The working blade of the high-speed disperser is composed of a precision stator and rotor, with a stable and narrow size between the stator and rotor. When the rotor rotates at high speed, it forms relative motion with the stator, and high-frequency reciprocating shearing of the material is carried out in the shearing chamber to achieve the final stable material. Suitable for fine mixing processes such as dispersion, emulsification, shearing, homogenization, etc
Product features of Yetuo YTF500-F high-speed digital dispersion machine
LCD display screen: convenient for observing data
The maximum speed can reach 28000 rpm
● Stepless speed regulation
The material of the shaft sleeve has strong corrosion resistance
The maximum working temperature can reach 120 ℃
