Product parameters:
Instrument model: QHP-150BE
Power supply voltage: AC220V 50HZ
Temperature control range: 10-60 ℃ with light/5-60 ℃ without light
Light intensity: 0-10000LX light source brightness
Working environment: temperature 5-30 ℃, relative humidity<90%; When the set temperature is ≤ 10 ℃, the ambient temperature should not exceed 26 ℃
Humidity control range: relative humidity 50% -90% RH (note: not applicable for high temperature and high humidity above 40 degrees)
Humidity fluctuation: ± 8% RH
Input power: 600W
Tray layers: 8 layers
Tray size (mm): 370x465
Spacing (excluding tray height) (mm): 55
Working dimensions (depth x width x height) (mm): 400x500x750
Dimensions (Depth x Width x Height) (mm): 650x670x1420
Constant temperature mode: forced convection, heating and cooling balance, and heating and cooling switching dual selection
Performance:
Power supply: 220V 50HZ
Operating temperature range: 5-50 ° C (when the set operating temperature is below 10 ° C, the ambient temperature is below 26 ° C)
Temperature resolution: 0.1 ℃
Temperature fluctuation: ± 1 ℃ (balanced temperature control)
Temperature distribution accuracy: ± 2 ° C (at 37 ℃)
Structure:
Interior and exterior: interior: made of stainless steel plate; Externally: The surface of cold-rolled galvanized steel sheet is coated with antibiotic resistant coating
Thermal insulation material: flame retardant insulation board+polyurethane foam
Heater: Stainless steel electric heating tube
Compressor: Fully enclosed compressor
Defrosting function: manual defrosting (optional automatic defrosting)
BOD power supply: built-in or external
Lighting: Built in LED lighting
Killing Grass Lamp: Optional
Test hole: one
Universal casters: 4 pieces
Number of partitions: 2 pieces
Partition load-bearing capacity:<15KG
controller:
Control methods: PID, adaptive control
Temperature display mode: LCD display
Temperature setting method: Touch the button to set
Time setting method: 0-9999 minutes
Operation functions: customized operation, scheduled operation, automatic stop
Additional functions: temperature deviation correction, menu locking, power outage memory
Program mode: Programmable
Sensor: PT100
Safety device: Overtemperature alarm
Optional additional configurations: partition, R485 interface, printer, recorder, programmable temperature controller
*This product comes standard with two partitions, please communicate with customer service before placing an order to select the appropriate one
- Product Details
- Product manual

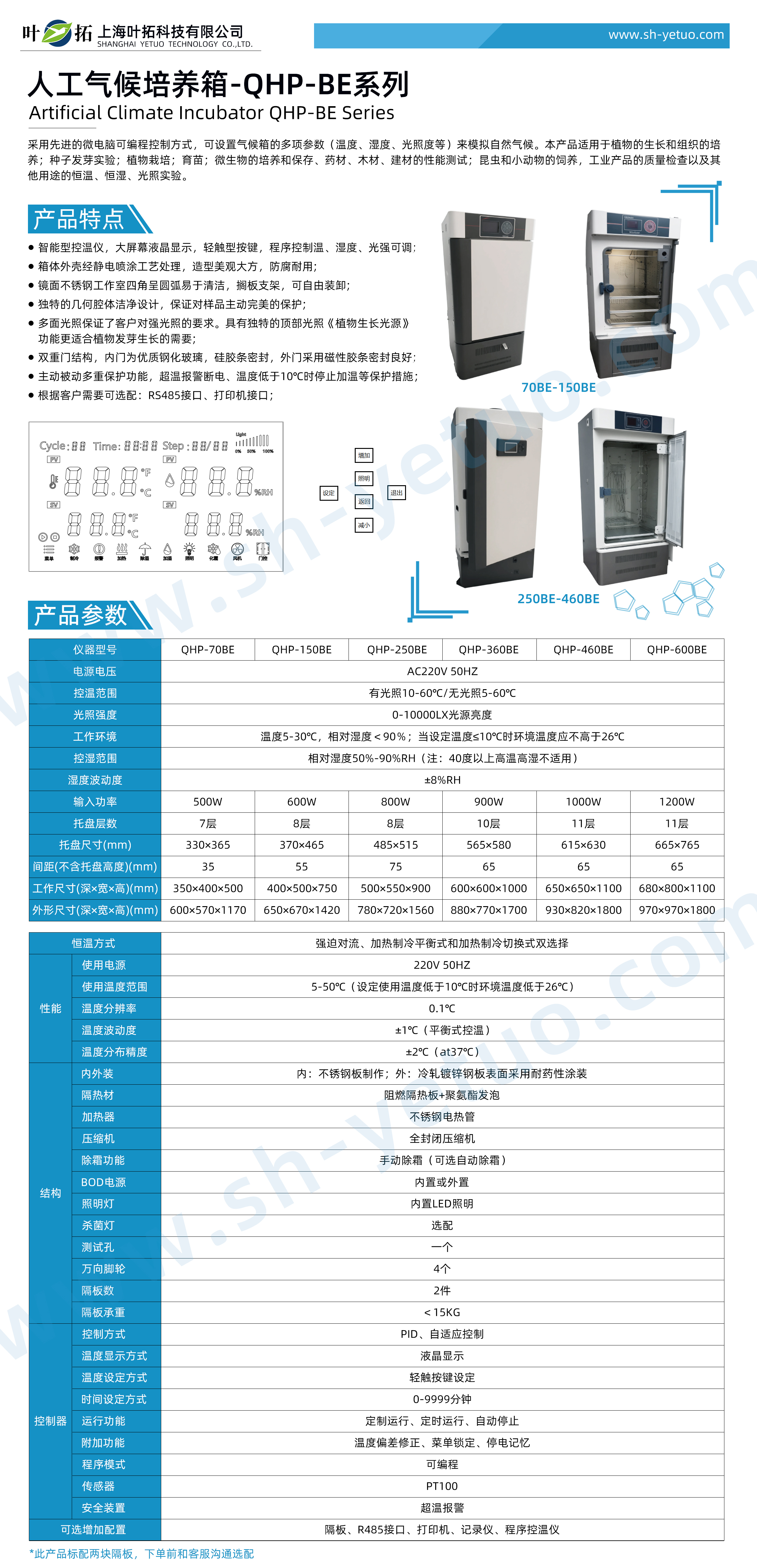

Ye Tuo QHP-150BE Artificial Climate Incubator
Model: QHP-150BE
Product Overview:
Adopting advanced microcomputer programmable control method, multiple parameters of the climate chamber (temperature, humidity, light intensity, etc.) can be set to simulate natural climate. This product is suitable for plant growth and tissue cultivation; Seed germination experiment; Plant cultivation; grow seedlings; Cultivation and preservation of microorganisms, performance testing of medicinal herbs, wood, and building materials; The breeding of insects and small animals, quality inspection of industrial products, and constant temperature, humidity, and light experiments for other purposes.
Product Features of Yetuo QHP-150BE Artificial Climate Incubator
Intelligent temperature controller, large screen LCD display, touch sensitive buttons, program controlled temperature, humidity, and adjustable light intensity;
The outer shell of the box is treated with electrostatic spraying technology, which has a beautiful and elegant appearance, and is corrosion-resistant and durable;
The four corners of the mirror stainless steel workshop are curved for easy cleaning, and the shelf bracket can be freely installed and removed;
Unique geometric cavity clean design ensures active and perfect protection of samples;
Multi sided lighting ensures customers' requirements for strong lighting. Having a unique top lighting function called 'Plant Growth Light Source' is more suitable for the needs of plant germination and growth;
● Double door structure, the inner door is made of high-quality tempered glass, sealed with silicone strips, and the outer door is well sealed with magnetic strips;
● Active and passive multiple protection functions, protection measures such as over temperature alarm and power-off, and stopping heating when the temperature drops below 10 ℃;
● Optional according to customer needs: RS485 interface, printer interface;
